RT2

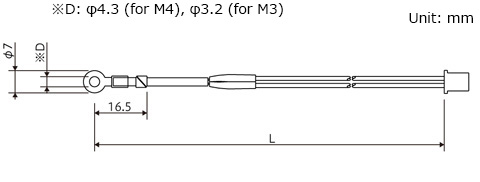

Standard sensor equipped with a lug terminal having high heat resistance
Sensing part: plated brass Wire: fluorocarbon, silicone rubber,
silicone rubber insulated with glass braid,cross-linked PE,
cross-linked PE parallel, PVC, PVC parallel
Other options available
Features
- High heat resistance, fast response and designed for assemblability
| Applications | Automobile inverters, water heater tanks and heat pump water heaters (surface) |
|---|---|
| Operating temperature | -20 to +180℃ |
| Thermal time constant | τ ≒ 6 sec. (on an aluminium plate at 100℃） |
| Dissipation constant | δ ≒ 2.5mW/℃ |
| Withstand voltage | 1250VAC for 1 min. or 1500VAC for 1 sec. |
| Insulation resistance | ≥100MΩ at 500VDC |
| Resistance | R100 = 3.3kΩ Other options available |
| B constant | B0/100 = 3970K Other options available |
Note 1) Values in the above table are for reference only.
Note 2) Unless otherwise stated, the thermal time constant and the dissipation constant are measured in still air.
