OCK1-1
Global standard sensor for microwave ovens

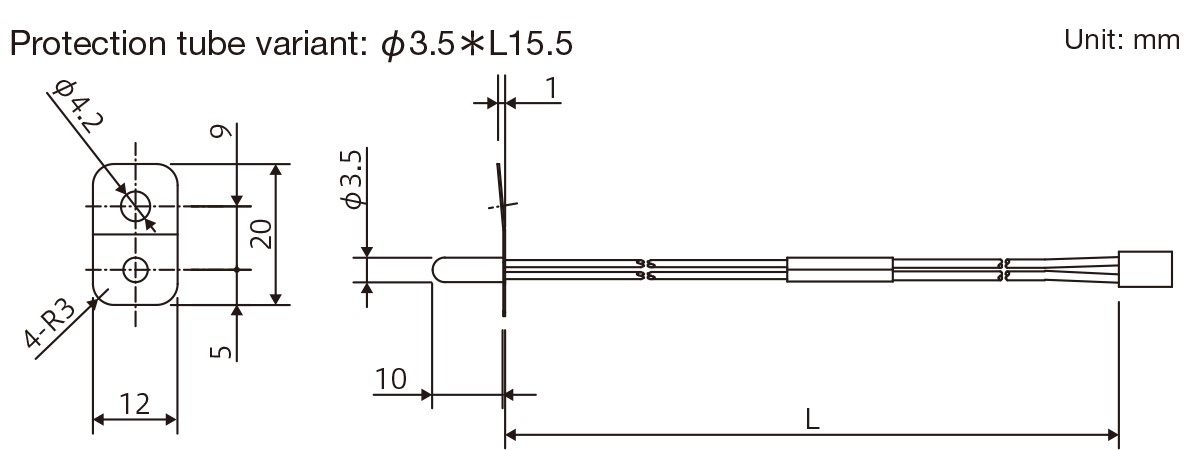

Sensing part: stainless steel Wire: cross-linked PE, silicone rubber,
silicone rubber insulated with glass braid
Other options available
Features
- Max. temperature up to 300℃
- Exposed in an oven chamber
| Applications | Microwave oven chambers |
|---|---|
| Operating temperature | -20 to +300℃ (from the tip of protection tube to the flange) |
| Thermal time constant | τ ≒ 80 sec. |
| Dissipation constant | δ ≒ 2.1mW/℃ |
| Withstand voltage | 1200VAC for 1 sec. |
| Insulation resistance | Min. 100MΩ at 500VDC |
| Resistance | R200 = 1kΩ Other options available |
| B constant | B100/200 = 4537K Other options available |
Note 1) Values in the above table are for reference only.
Note 2) Unless otherwise stated, the thermal time constant and the dissipation constant are measured in still air.
